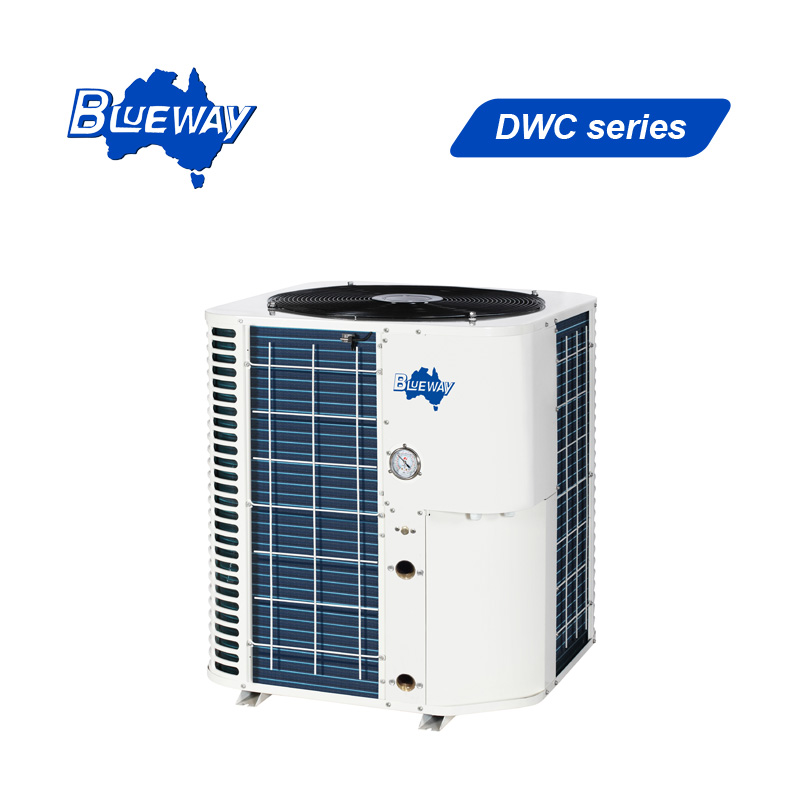

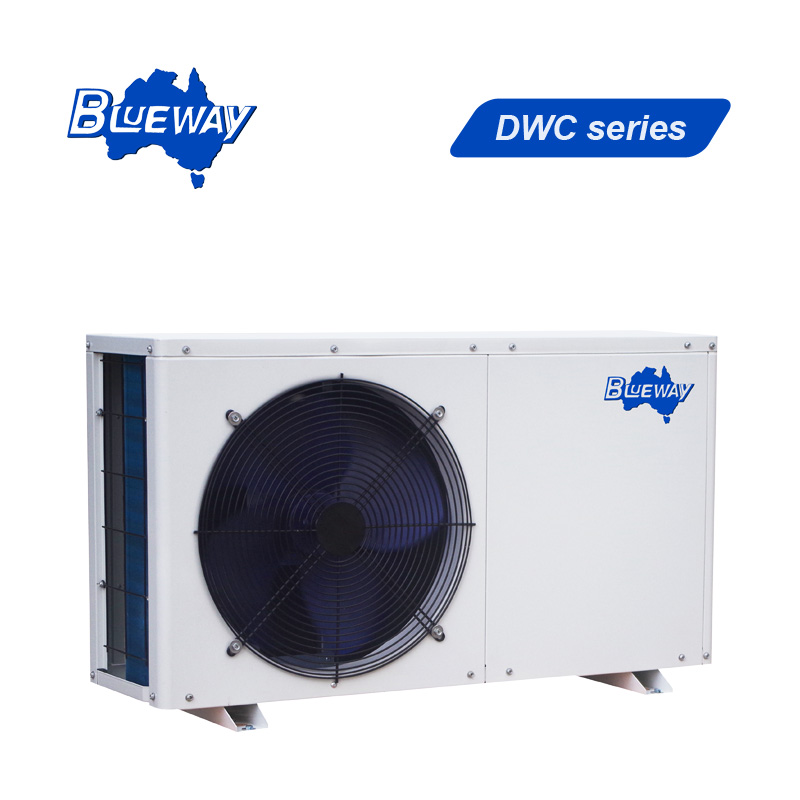

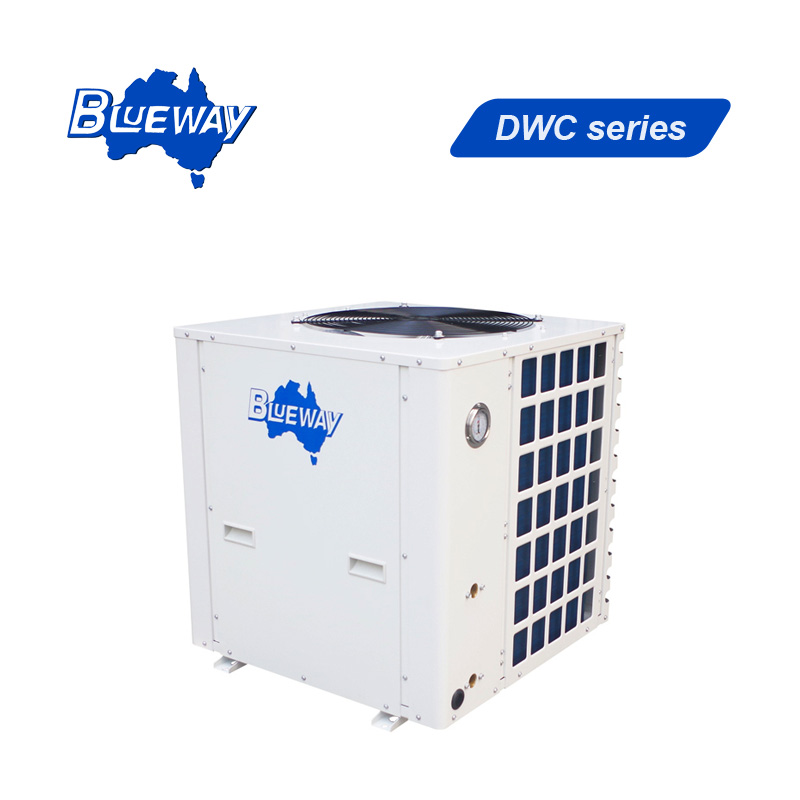

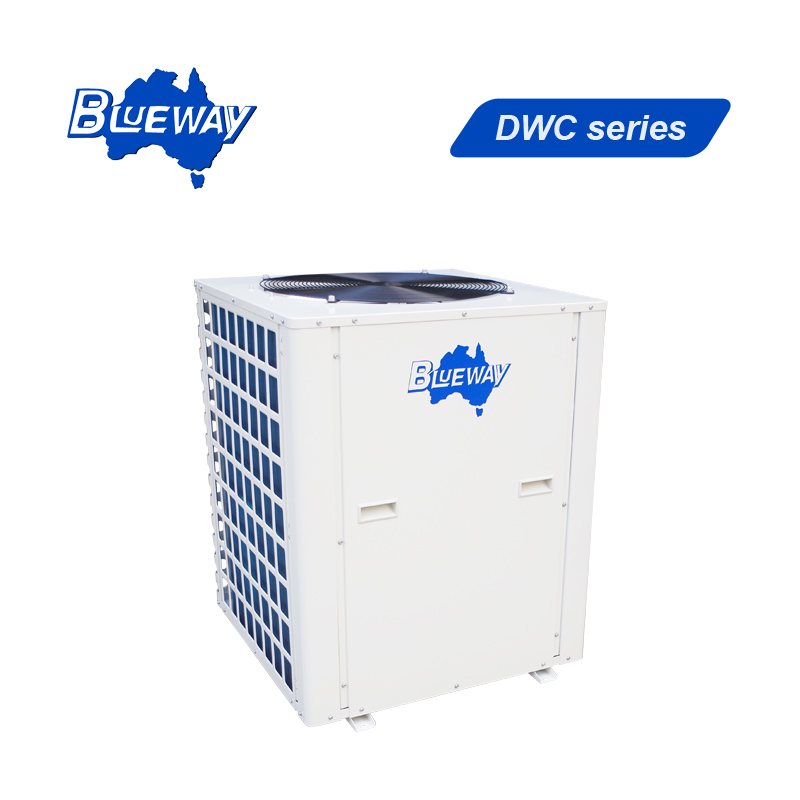

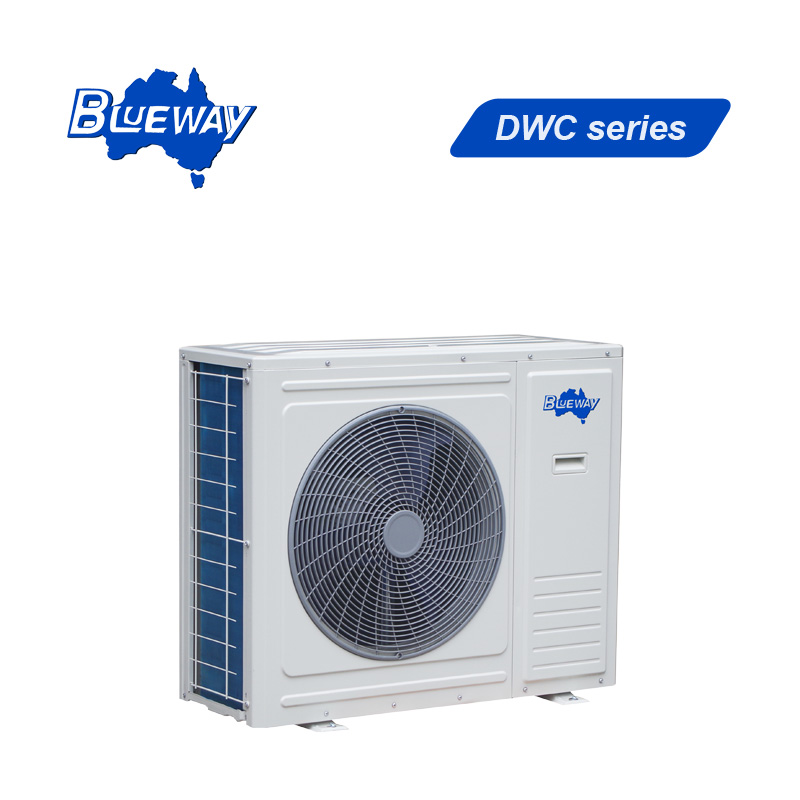

Domestic Air Cooled Water Chiller is specially designed for the need of domestic chilled water in tropical regions of the gulf areas, where the ambient temperature in harsh hot summer can go above 50℃, causing the rooftop tank water reach unbearable temperatures, for applications like bathroom, kitchen and laundry, etc.
The system consists of a refrigerant circuit and a water circuit. The refrigerant circuit is composed of a compressor, a condenser coil, a heat exchanger and a throttling device. The water circuit is composed of a water pump and the same water heat exchanger. The refrigerant absorbs heat from the water passing by the heat exchanger, by which the water temperature is reduced.
The evaporator or condenser coil used is of fin and tube type. The fins are hydrophilic treated aluminum fins to resist corrosion, and the copper tubes are inner-grooved type, which increases the heat transfer in the refrigerant side.
The units are supplied with micro processor based digital controller with LCD display. The controller is programmed to provide a maximum protection to the heat pump system and accurate temperature control. The control panel is completely factory wired with all accessories and terminals included.
Domestic ranges are supplied with a built-in circulation pump. Wilo or Shinhoo water pump is optional.
Blueway water chillers adopt aluminum fan blade in tropical regions.
With tropical resistance capacity
High efficiency and energy saving
Quiet operation due to less moving parts
Safe and hygienic water
SUS 316 high corrosion resistance
High thermal efficiency
High working pressure
Low maintenance
More options: tube-in-tube, tube-in-shell
●Tropical design for extremely hot working ambient temperature up to 53℃
●High efficiency rotary or scroll compressor, tropical for high ambient conditions
●Eco-friendly CFC free refrigerant R410a, without ozone depletion
●Electric expansion valve for reliability and high precision expansion
●Intelligent micro processor based digital controller with LCD user-friendly interface
●Comfortable sanitary chilled outlet water temp. range is 15-35℃
●Brazed SUS 316 plate heat exchanger for high efficiency, super corrosion resistance
●Guaranteed water safety, no potential risk of contamination to potable water
●Heavy galvanized steel cabinet with epoxy powder painted for lasting outdoor life span
●Full safety protection incorporated to the water chiller system:
★high pressure & low pressure protection
★compressor overload and high discharge temperature protection
★phase failure protection
★water flow protection
★anti-freezing protection
●Coated aluminum fins for corrosion resistant
●Built-in circulation pump is optional
●Wide capacity range: 1 - 7 Ton
●Compatible with all types of existing tanks
●Be installed in the garden or roof
●Compact design, providing OEM service
●Option: water chiller for air conditioning application with outlet water temp. 7-15℃
●Easy Installation: be easily installed by a plumber or electrician to an existing tank
●Easy Operation: operates like a simple domestic appliance, with RS485 interface
●Energy Saving : saves 2/3 running cost than conventional electric appliances
Q:What is the strength of your water chiller?
A:Blueway innovative air cooled water chiller equipped with good quality components, with high efficiency, energy-saving, preferable prices. T3 series can work at high ambient up to 53 degrees without tripping.
Q:Do you sell to oversea markets?
A:We've kept exporting air cooled water chiller to middle east over 10 years, including UAE, Qatar, Kuwait, Oman, Yemen, etc.
Q:What is the delivery lead time?
A:Generally, it depends on the PMC & production plan, may takes around 30 working days if standard models.
Q:Whether your company can provide OEM service?
A:Yes, we have our own R&D team, providing OEM, OBM, ODM services with high quality products.
Q:Can you export the goods with gas inside?
A:Yes, we can. Our forwarders have built up close cooperation with the major shipping companies.
Q:Where is your nearest loading port?
A:FCL by Nansha seaport, LCL by Shunde seaport.
Q:What is the H.S. Code of water chiller?
A:H.S Code is as same as heat pump 8418612090.
